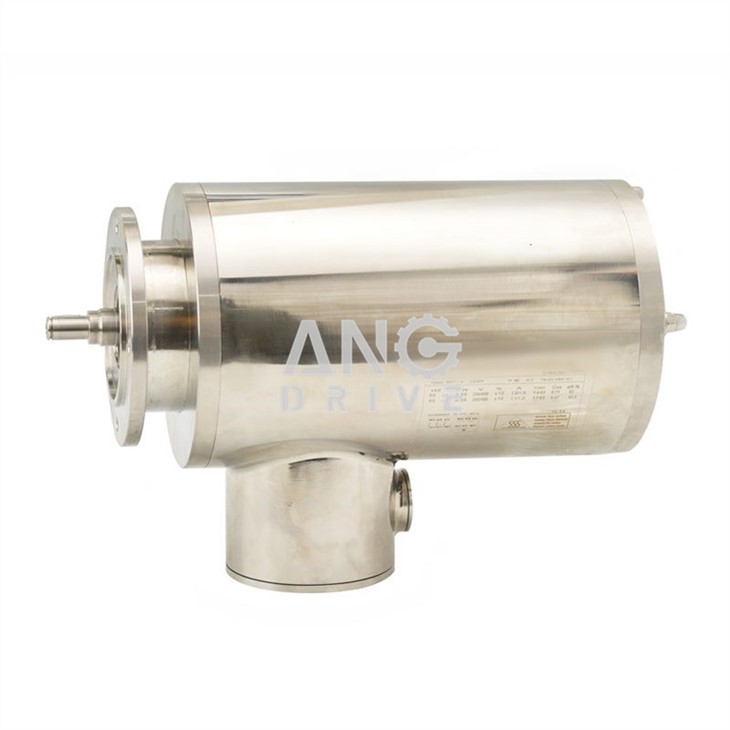

Inox Electric Motor

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of inox electric motor which is high efficiency, low noise, low temperature rise, long service life, etc.

Send Inquiry

Product Introduction

ANG inox electric motor is corrosion-resistant, it is designed to be suitable for wet, hostile, and sterile operating environments.

This inox series includes:

(1) Inox electric motor: IEC metric dimension, Nema inch dimension.

(2) Inox helical geared motor: coaxial helical geared motor, bevel helical geared motor.

(3) Inox worm geared motor: IEC metric dimension, Nema inch dimension.

Specification of inox electric motor:

Power	1/4HP~20HP
Frame Size	IEC 63-90 B5 B14, NEMA 56, 140T-280
Motor Phase	Single or Three
Voltage	(208-230)230/460V
Poles	2, 4, 6, 8 poles
Protection Class	IP69
Cooling method	TENV or TEFC
Mounting Type	B14, B3, B5, B35, B34
Ambient Temperature	-15 ~ +40 °C
Altitude	≤1000M
Material	Stainless steel 304

Specification of inox reducer motor:

Reducer types	Helical, Bevel, Worm
Motor Power	0.06kw to 7.5kw
Gear ratio	1/5 ~ 1/200
Motor	AC motor
Body material	Inox 304 or 316
Standard	Metric size, Inch size
Lubrication	Food grade lubrication oil

Applications

Typical applications for these gearboxes includes: Transport conveyors, sorting machines, cleaning/washing machines, filling/dosing/dispensing machines, drying machines, heating/freezing machines, packaging machines, palletizing machines, bucket elevators, pump drives (diaphragm metering, rotary lobe, screw spindle, centrifugal, impeller), marine (anchor winch, capstan), candy machines, bakery ovens, and feed extruders.

Features:

1. Stainless steel frame: high polished Premium 304 Material.

2. Additional spare parts can be provided, like output flanges, input flanges, output solid shafts, torque arms, etc.

3. Extra deep rabbeted fits: Extra deep rabbeted for 100% concentricity and sealing (explosion proof tolerances).

4. Stainless steel end-shield: precision machined from premium 304 stainless steel and end-shield is fitted by long bolts, it is easy to disassembly.

5. Housing: the housing which matched with convex bolt and stainless steel thread, nice looking and easy disassembly.

6. Extra deep treatment: special "O" rings proprietary submersible style "O" ring construction on the end shields for double the protection against water.

7. Frame to conduit box: Epoxy encapsulated head entrance conduit box to positively keep chemicals and moisture from entering motor.

8. Conduit box cover: Conduit box cover with seal simply twists on or off for quick and easy installation and maintenance.

9. Entrance connector: IP55-IP68 submersible style cable gland is provided.
