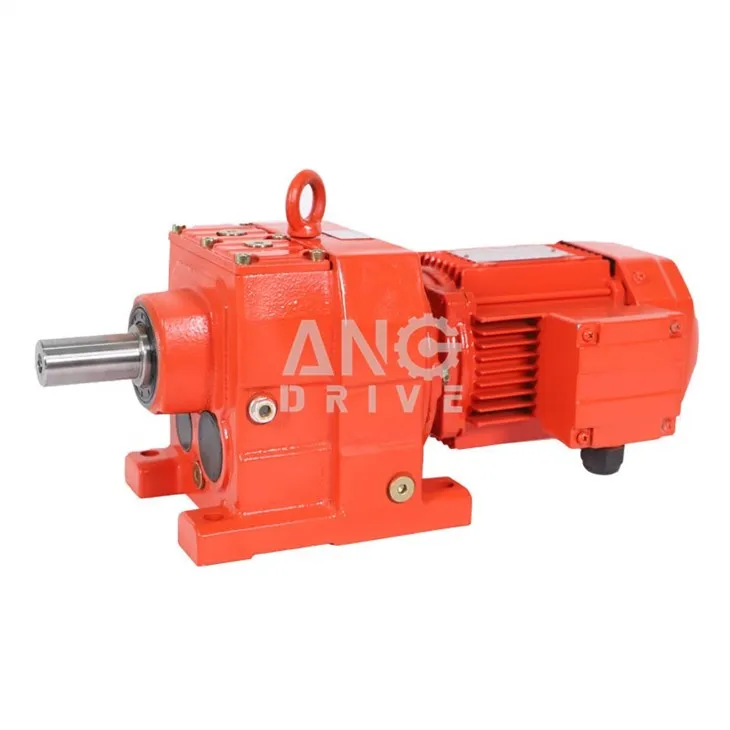

Helical Gear Units
Helical Gear Units Features
R Series (Foot-mounted): R17~R167
RS Series (Foot-mounted, Solid Shaft Input)
RF Series (Flange-mounted): RF17~RF167
RFS Series (Flange-mounted, Solid Shaft Input)
RX Series (Foot-mounted): RX37~RX157
RXS Series (Foot-mounted, Solid Shaft Input)
RXF Series (Flange-mounted): RXF37~RXF157
RXFS Series (Flange-mounted, Solid Shaft Input)
RM Series (Agitator Gearboxes): Specially designed for agitating applications
Helical Gear Units Specification
Gear Motor | Output Shaft | Power | Ratio | Max. Torque |
Model | Dia. (mm) | (kW) | (i) | (Nm) |
R/RF17 | 20mm | 0.18~0.75 | 3.83~74.84 | 85 |
R/RF27 | 25mm | 0.18~3 | 3.37~135.09 | 130 |
R/RF37 | 25mm | 0.18~3 | 3.41~134.82 | 200 |
R/RF47 | 30mm | 0.18~5.5 | 3.83~176.88 | 300 |
R/RF57 | 35mm | 0.18~7.5 | 4.39~186.89 | 450 |
R/RF67 | 35mm | 0.18~7.5 | 4.29~199.81 | 600 |
R/RF77 | 40mm | 0.18~11 | 5.21~195.24 | 820 |
R/RF87 | 50mm | 0.55~22 | 5.36~246.54 | 1550 |
R/RF97 | 60mm | 0.55~30 | 4.49~289.6 | 3000 |
R/RF107 | 70mm | 2.2~45 | 5.06~245.5 | 4300 |
R/RF137 | 90mm | 5.5~55 | 5.51~223.34 | 8000 |
R/RF147 | 110mm | 11~90 | 5.00~163.46 | 13000 |
R/RF167 | 120mm | 11~160 | 8.77~196.41 | 18000 |
RX/RXF37 | 20mm | 0.18~1.1 | 1.6~3.76 | 20 |
RX/RXF57 | 20mm | 0.18~5.5 | 1.3~5.5 | 70 |
RX/RXF67 | 25mm | 0.18~7.5 | 1.4~6.07 | 135 |
RX/RXF77 | 30mm | 1.1~11 | 1.42~5.63 | 215 |
RX/RXF87 | 40mm | 3~22 | 1.39~6.44 | 400 |
RX/RXF97 | 50mm | 5.5~30 | 1.42~5.82 | 600 |
RX/RXF107 | 60mm | 7.5~45 | 1.44~6.65 | 830 |
RX/RXF127 | 75mm | 7.5~90 | 1.56~6.47 | 1110 |
RX/RXF157 | 90mm | 11~132 | 1.63~6.22 | 1680 |
Why Choose Our Helical Gear Units?
Helical Gear Units Mounting Position
Multiple application
Generally, it is applied to construction machines, water conservation machines, mining machines, Rubber machines, conveyors, and other industrial machinery installed in a damp, dusty, or dirty environment.
|
|
|
Mechanical engineering | Mining equipment | Electricity equipment |
|
|
|
Industrial | Food processing | Metallurgy |
Available Drive Motors
General Motors of 1 Phase or 3 Phase AC
Brake Motors
Variable Frequency Variable Speed Motors
Variable-pole Multi-speed Motors
Explosion-proof Motors
Permanent Magnet Motors
DC Motors
Servo Motors
Brushless Motors
Other Motors
Company Introduction
Watch the manufacturer video by clicking this link
FAQ
Q: Are you a trading company or manufacturer?
A:We are a manufacurer with advanced equipment and experienced workers.
Q: What's your production capacity?
A:8000-9000 PCS/MONTH
Q: Free sample is available or not?
A:Yes, we can supply free sample if customer agree to pay for the courier cost
