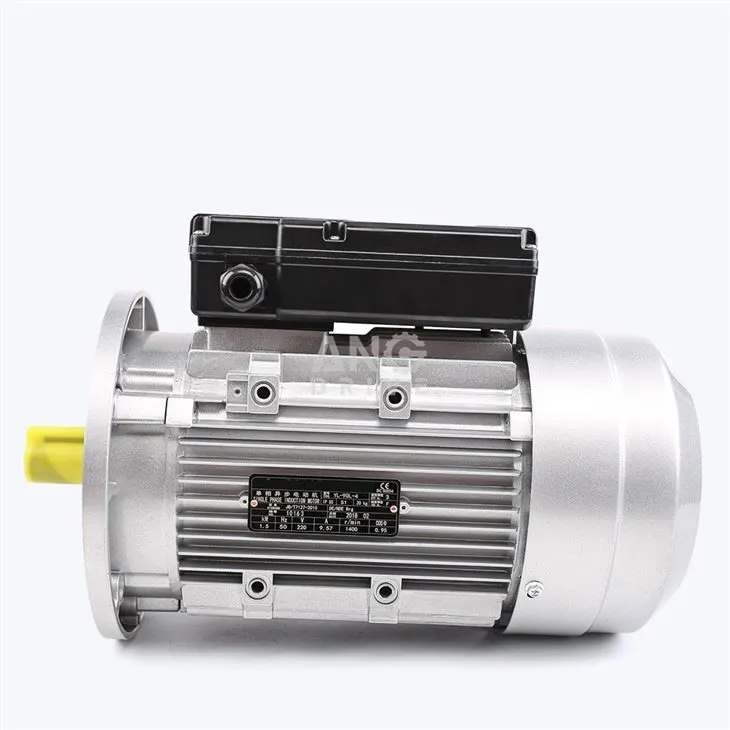

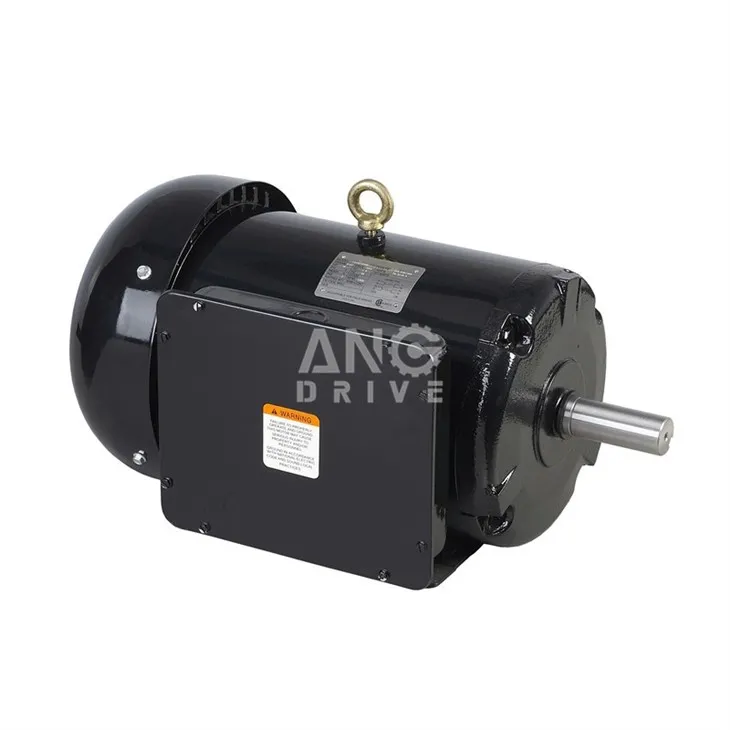

Fractional HP Motor

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of Fractional HP Motor which is high efficiency, low noise, low-temperature rise, long service life, etc.

Send Inquiry

Product Introduction

Fractional HP Motor Features

1. 100% copper winding wires, 100% output power, high-quality cold roll silicon steel.

2. Dynamically balanced, original structure and attractive appearance.

3. High efficiency and power factor, energy-saving.

Fractional HP Motor Specification

Motor Series	MS series, YL series, etc.	Rated Power	6w ~ 750w, below 1HP, Such as 1/8HP 1/6HP 1/4HP 1/3HP 1/2HP 3/4HP
Number of Poles	2Pole, 4Pole, 6Pole, 8Pole	Efficiency	IE1 / IE2 / IE3 / IE4
Voltage	110V 115V 220V 230V 380V 400V 415V 440V	Frequency	50Hz, 60Hz
Protection Class	IP54, IP55, IP56, IP65, IP66, IP67, IP69K waterproof	Insulation Grade	F
Cooling Method	IC411, IC410, IC416, TENV, TEFC	Continuous Working Duty	S1, S2, S3, S4, S5, S6, S7, S8
Starting Mode	Direct on-line Starting	Transport Package	Plywood case
Frame Material	Aluminum alloy or Stainless steel	Origin	Hangzhou, China
Mounting Position	IMB3/B5/B35/B14/B34	HS Code	8501520000 / 8501530090
Certification	CE	Specification	56B5, 56B14, 63B5, 63B14, 71B5, 71B14, 80B5, 80B14, 90B5, 90B14
Accessories	Helical gearbox, worm gear reducer, planetary reduction unit, thermal protector, forced cooling fan, rain cover, etc.	Warranty time	12 months

Why Choose Our Fractional Horse Power Motor?

advantage of ac motor

Fractional Horse Power Motor Details

description of ac motor

Multiple application

Generally, it is applied on water pumps, fans, blowers, compressors, conveyors, and other industrial machinery installed in a damp, dusty, or dirty environment.


Mechanical engineering	Mining equipment	Electricity equipment

Industrial	Food processing	Metallurgy

MS Series Three Phase Aluminum Electric Motor

Model	Rated Output		Amps(A)	Speed r/min	Frequency (HZ)	LRT/RLT	BDT/RLT
Model	kW	HP	380V	Speed r/min	Frequency (HZ)	LRT/RLT	BDT/RLT
MS561-2	0.09	1/8	0.29	2700	50	2.2	2.1
MS562-2	0.12	1/6	0.37	2700	50	2.2	2.1
MS63M1-2	0.18	1/4	0.53	2720	50	2.3	2.3
MS63M2-2	0.25	1/3	0.69	2720	50	2.3	2.3
MS71M1-2	0.37	1/2	1.01	2755	50	2.2	2.3
MS71M2-2	0.55	3/4	1.38	2790	50	2.3	2.3

Model	Rated Output		Amps(A)	Speed r/min	Frequency (HZ)	LRT/RLT	BDT/RLT	LRA/RLA	EFF (%)	Power factor (cosφ)
Model	kW	HP	380V	Speed r/min	Frequency (HZ)	LRT/RLT	BDT/RLT	LRA/RLA	EFF (%)	Power factor (cosφ)
MS561-4	0.06	1/12	0.23	1300	50	2.1	2	4	56	0.7
MS562-4	0.09	1/8	0.33	1300	50	2.1	2	4	58	0.72
MS63M1-4	0.12	1/6	0.44	1310	50	2.2	2.1	4.4	57	0.72
MS63M2-4	0.18	1/4	0.62	1310	50	2.2	2.1	4.4	60	0.73
MS71M1-4	0.25	1/3	0.79	1340	50	2.2	2.1	5.2	65	0.74
MS71M2-4	0.37	1/2	1.12	1340	50	2.2	2.1	5.2	57	0.75
MS80M1-4	0.55	3/4	1.52	1390	50	2.3	2.4	5.2	71	0.75

Model	Rated Output		Amps(A)	Speed r/min	Frequency (HZ)	LRT/RLT	BDT/RLT	LRA/RLA	EFF (%)	Power factor (cosφ)
Model	kW	HP	380V	Speed r/min	Frequency (HZ)	LRT/RLT	BDT/RLT	LRA/RLA	EFF (%)	Power factor (cosφ)
MS71M1-6	0.18	1/4	0.74	870	50	2	1.9	4	56	0.66
MS71M2-6	0.25	1/3	0.95	870	50	2	1.9	4	59	0.68
MS80M1-6	0.37	1/2	1.23	880	50	2	1.9	4.7	62	0.7
MS80M2-6	0.55	3/4	1.7	880	50	2.1	1.9	4.7	65	0.72
MS80M1-8	0.18	1/4	0.83	645	50	1.9	1.8	3.3	51	0.61
MS80M2-8	0.25	1/3	1.1	645	50	1.9	1.8	3.3	54	0.61
MS90S-8	0.37	1/2	1.49	675	50	1.9	1.8	4	62	0.61
MS90L-8	0.55	3/4	2.17	680	50	2	1.8	4	63	0.61

MY Series Capacitor Running of Single-phase Asynchronous Electrical Motor

Model	Power (KW)	Voltage (V)	Current (A)	Speed (r/min)	EFF (%)	Power Factor	Tstart /Tn (Time)	Tmax/Tn (Time)
MY631-2	0.18	220	1.48	2800	65	0.92	0.4	1.7
MY632-2	0.25	220	1.96	2800	66	0.92	0.4	1.7
MY711-2	0.37	220	2.73	2800	67	0.92	0.35	1.7
MY712-2	0.55	220	3.88	2800	70	0.92	0.35	1.7

MC Series Capacitor Start One Phase Elektromotor

Model	Power (KW)	Voltage (V)	Current (A)	Speed (r/min)	EFF (%)	Power Factor	Tstart /Tn (Time)	Tmax/Tn (Time)	Starting A (uf/v)	Sun Capacity (uf/v)
MC711-2	0.18	220	1.89	2800	60	0.72	3	1.8	12	75uf/300v
MC712-2	0.25	220	2.04	2800	64	0.74	3	1.8	15	75uf/300v
MC801-2	0.37	220	3.36	2800	65	0.77	2.8	1.8	21	100uf/300v
MC802-2	0.55	220	4.65	2800	68	0.79	2.8	1.8	29	150uf/300v
MC711-4	0.12	220	1.88	1400	50	0.58	3	1.8	9	75uf/300v
MC712-4	0.18	220	2.49	1400	53	0.62	2.8	1.8	12	75uf/300v
MC801-4	0.25	220	3.11	1400	58	0.63	2.8	1.8	15	100uf/300v
MY802-4	0.37	220	4.24	1400	62	0.64	2.5	1.8	21	100uf/300v
MC90S-4	0.55	220	5.49	1400	66	0.69	2.5	1.8	29	100uf/300v

YC/YCL Series Heavy-duty Single Phase Capacitor Start AC Electromotor

Model	Rated Output		Speed (r.p.m)	Current (A)	Eff.(%)	Power factor (cos)	lst/ln	Tst/Tn
Model	kW	HP	Speed (r.p.m)	Current (A)	Eff.(%)	Power factor (cos)	lst/ln	Tst/Tn
YC711-2	0.18	1/4	2800	1.9	63	0.7	6.5	3
YC712-2	0.25	1/3	2800	2.4	65	0.72	6.5	3
YC80A-2	0.37	1/2	2840	3.5	66	0.74	6.5	3
YC80B-2	0.55	1	2850	6.68	68	0.75	6.5	3
YC711-4	0.12	1/6	1450	1.9	48	0.58	6	3
YC712-4	0.18	1/4	1450	270	50	0.6	6	3
YC80A-4	0.25	1/3	1450	3.52	52	0.62	6	3
YC80B4	0.37	1/2	1450	4.69	56	0.61	6	3
YC80C-4	0.55	3/4	1450	6	60	0.65	6	3

Model	Power (kw	Speed (r/min)	Current (A)	(A) Voltage (V)	EFF (%)	Power Factor (CosΦ)	LRT	BDT	LRA	Noise dB (A)
Model	Power (kw	Speed (r/min)	Current (A)	(A) Voltage (V)	EFF (%)	Power Factor (CosΦ)	RLT	RLT	RLA	Noise dB (A)
YCL711-2	0.37	2800	2.7	220	67	0.92	1.8	1.7	16	72
YCL712-2	0.55	2800	3.9	220	70	0.92	1.8	1.7	21	72
YCL711-4	0.25	1400	2.0	220	62	0.92	1.8	1.7	12	67
YCL712-4	0.37	1400	2.8	220	65	0.92	1.8	1.7	16	67
YCL801-4	0.55	1400	4.0	220	68	0.95	1.8	1.7	21	70
