Boiler Gear Motor

Product Introduction:

The boiler gear motors are widely used in transportation system, clean system, heating system, cooling system, storage system, burning system, and others.

Advantages

● No oil leakage

● Low noise

● Low temperature rise

● Favorable price

Typical models for example:

Transportation system – asynchronous gear motor

    Main parameters:

    Vol / Freq: 1 ph 230 v, 50 Hz

    Motor power: 10 w 15 w 25 w

    Motor speed: 1250 rpm

    Reduction ratio: 1/100, 1/200

    Optional accessory: Wire box / Capacitor / Brake / Wire plug

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Storage system – worm gear motor

    Main parameters:

    Vol / Freq: 1 ph 230 v 50 Hz

    Motor power: 0.25 kw 0.37 kw

    Motor speed: 1300 rpm

    Reduction ratio: 1/40, 1/50

    Optional accessory: Wire box / Capacitor / Wire plug

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    Heating system –shaded pole gear motor

        Main parameters:

        Model: YJ61 series

        Vol / Freq: 1ph 230v, 50Hz

        Motor power: 20 ~ 70w

        Motor speed: 2800 rpm

        Final speed: 2 ~ 250 rpm

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Cooling system – Centrifugal Fan

    Main parameters:

    Model: 150

    Vol / Freq: 1 ph 230 v, 50 Hz

    Motor power: 32 w 100 w

    Motor speed: 2400 rpm

    Optional model: 180

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

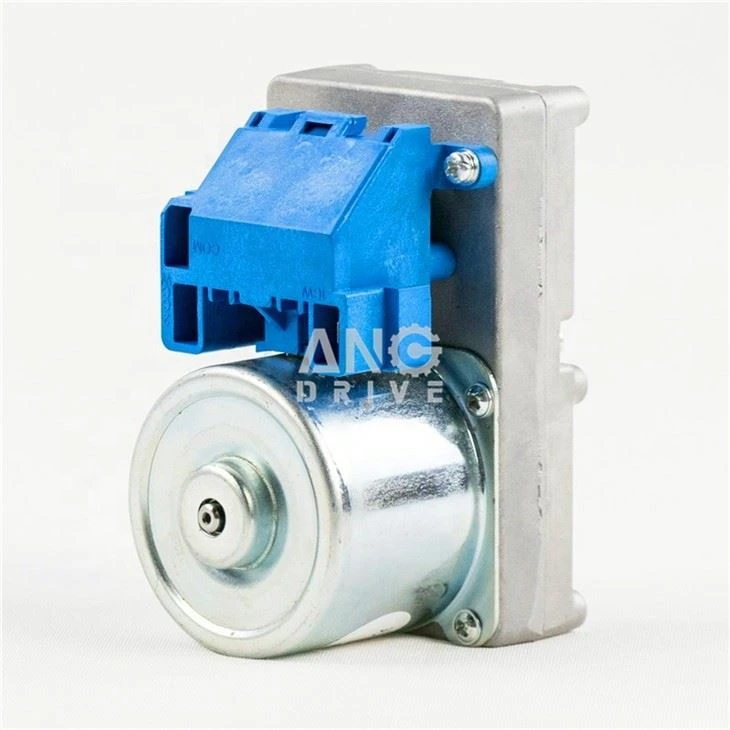

    Pellet Stove – synchronous gear motor

        Main parameters:

        Model: TYD60

        Vol / Freq: 12 - 240 v, 50/60 Hz

        Motor power: 1 ~ 25 W

        Output speed: 1 rpm - 136 rpm

Induction gear motor features:

Generally, a Micro induction gear motor refers to the motor rotated by the induction. The induction gear motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency, and can rotate continuously.
