BLDC Reducer Motor
BLDC Gear Motor Feature:
A. Low power consumption, smaller battery and longer battery life
B. No need cleaning and maintenance
C. Easy for speed adjustment and reversible direction
D. Removable location
E. Smaller size, compact and less weight design
F. Longer life, higher quality with reliability
G. Higher efficiency, low heat lose and high C/P
H. Higher speed, high performance
I. Lower emissions, lower EMI/RFI
J. Smart control, cleaner with smart function
K.Variable speed operation
L.High efficiency up to 85%
M.High starting torque
N.Excellent Speed and Position Control
O.Long Service Life / Reliable
P.Compact Size
Customize:
•Internal /external driver available
•Shaft dimension can be customized
Application:
•Automatic shutter/ curtain/doors
•Consumer Electronics
•Home automation
•Industrial Automation
•Medical equipment
•Printers & Copiers
•Power Tools

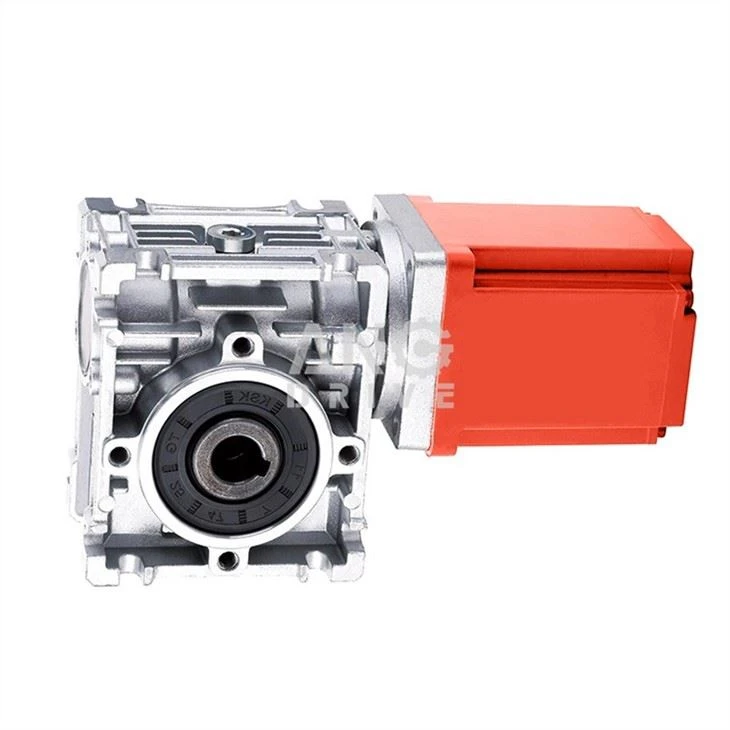

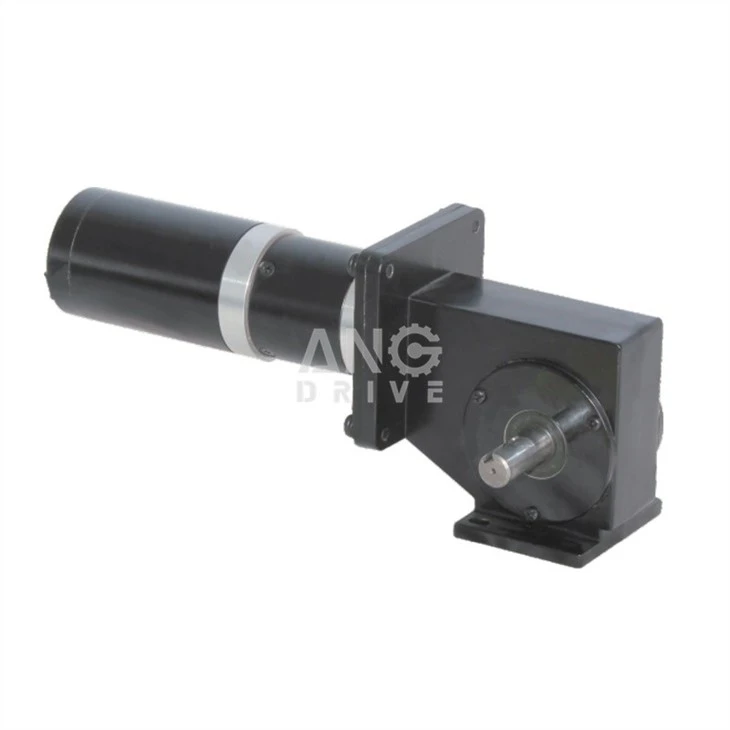

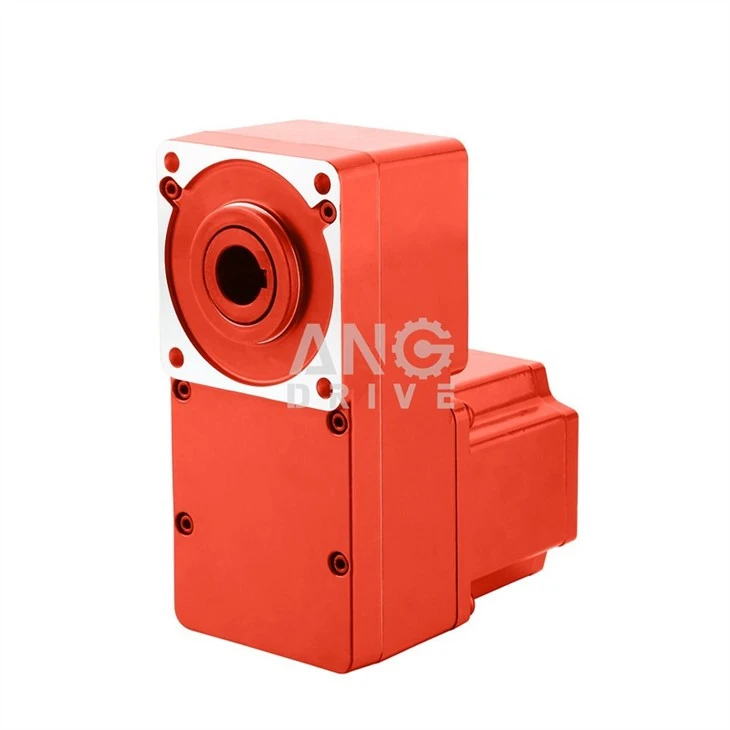

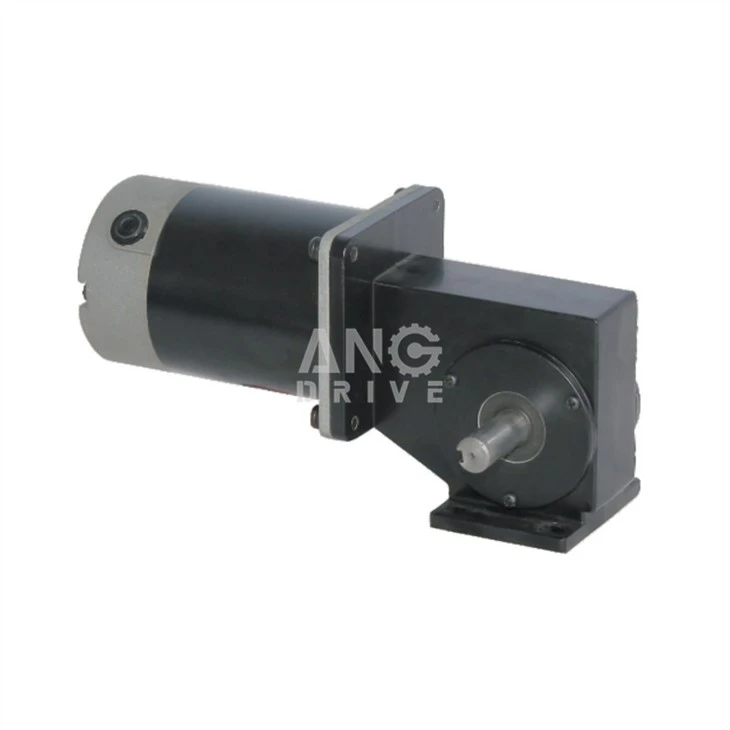

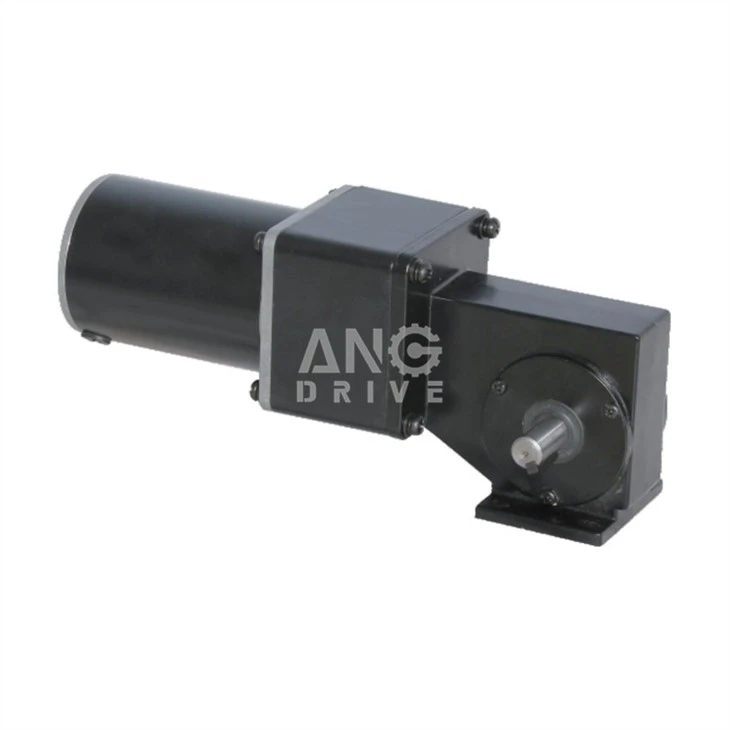

BLDC Gear Motor
| Reducer type | Worm gear reducer | Model | RV030 | |||||||
| Gear ratio | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
| Rated output speed rpm | 267 | 200 | 133 | 100 | 80 | 67 | 50 | 40 | 33 | 25 |
| Rated outout torque Nm | 2.9 | 3.8 | 5.7 | 7.4 | 9.1 | 10.6 | 13.4 | 12 | 17 | 12 |
