Favorable price, fast delivery, timely service-- ANG is your reliable supplier of WPEDO Gearbox which is free from oil leakage, low noise, low-temperature rise, long service life, etc.

Send Inquiry

Product Introduction

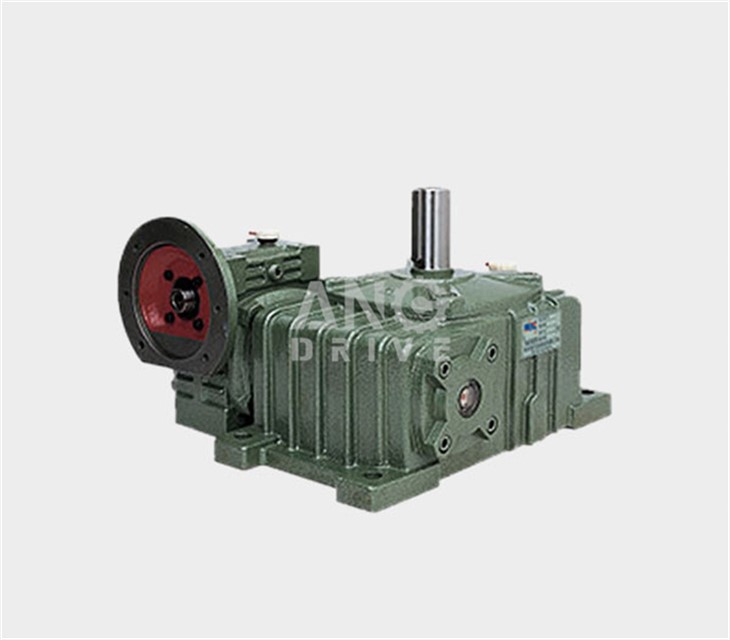

WPEDO Gearbox

WPEDO Drawing:

Parameters:

Size	Input (Kw)	Ratio	A	AB	BA	BB	BC	BE	HB	CA	M	N	E	E₁	E₂	G	Z	Flange					Input Hole			Output Shaft			Weight (Kg)
																		LA	LB	LC	LE	LZ	Q	U	TxV	LS	S	WxY
40-70	0.12	200 300 400 500 600 800 900	287	126	40	131	65	75	50	145	156	295	120	120	135	20	15	115	95	140	4	M8	31	11	4x12.8	60	28	8x4	19
50-80	0.18		314	144	50	142	70	83	65	163	175	320	140	130	150	20	15	115	95	140	4	M8	31	11	4x12.8	65	32	10x5	27
60-100	0.37		387	175	60	169	90	91	75	191	224	375	190	155	180	26	15	130	110	160	4	M8	33	14	5x16.3	75	38	10x5	45
70-120	0.37		425	193	70	190	100	109	90	229	266	450	220	185	215	30	18	130	110	160	4	M8	40	14	5x16.3	85	45	14x5.5	65
	0.75		445					111		231								165	130	200		M10	42	19	6x21.8
80-135	0.75		499	226	80	210	110	125	105	260	306	495	260	210	235	30	18	165	130	200	4.5	M10	48	19	6x21.8	95	55	16x6	98
	1.5																						52	24	8x27.3
100-155	1.5		570	269	100	252	140	148	130	303	350	590	290	245	295	35	21	165	130	200	4.5	M10	52	24	8x27.3	110	60	18x7	152
120-175	2.2		631	287	120	262	150	181	155	356	394	640	320	267	323	40	21	215	180	250	5	M12	63	28	8x31.3	110	65	18x7	194
	3.0
135-200	3.0		680	318	135	305	175	202	185	402	440	710	370	290	360	40	24	215	180	250	5	M12	63	28	8x31.3	125	70	20x7.5	283
	4.0
155-250	4.0		815	380	155	360	200	224	203	474	510	860	440	350	440	45	28	215	180	250	5	M12	63	28	8x31.3	155	90	25x9	450
	5.5							247		497								265	230	300	5	M12	83	38	10x41.3
